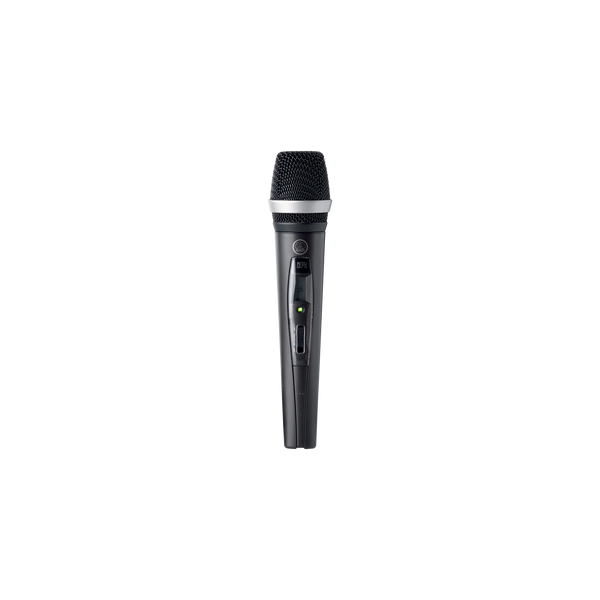

AKG HT470 D5 Band 8 UHF Handheld Wireless Transmitter 50 mW

AKG HT470 D5 BD8: Band 8 Handheld Transmitter with Supercardioid Head

The AKG HT470 D5 BD8 50mW is an analog UHF handheld wireless microphone transmitter fitted with the D5 supercardioid dynamic head and tuned to frequency Band 8, 570.1 to 600.5 MHz, at 50 mW of effective radiated power. Audio performance is 35 Hz to 20,000 Hz within plus or minus 3 dB, with 0.7 percent total harmonic distortion, better than 120 dB-A signal-to-noise and a 144 dB SPL ceiling that no vocalist will reach. Setup is handled by infrared data transfer from the companion SR470 stationary receiver, which programs the carrier frequency automatically rather than leaving an operator to enter numbers on a small display under stage lighting. A single AA cell runs it for a full show, and the LC display reports remaining battery capacity in hours instead of guessing with a bar meter. It is the handheld most often bought to match a Band 8 system already installed and working.

Decoding the Part Number: D5, BD8 and 50mW

Three separate pieces of information are packed into this part number, and each one has to match the system it is joining. D5 identifies the fitted microphone head, a dynamic supercardioid handheld vocal capsule rated to 144 dB SPL, and because heads are interchangeable within this transmitter platform a different capsule can be fitted to the same body later. BD8 means frequency Band 8, confirmed on the manufacturer cutsheet band table as 570.1 to 600.5 MHz, and this is the specification a buyer must match, since a transmitter tuned to one band cannot talk to a receiver tuned to another. Finally 50mW is the effective radiated power, the RF output level, and the same transmitter is also built in a 10 mW variant for territories whose regulations require lower power. Getting all three right is why most buyers of this SKU are matching an existing rack rather than starting a new system.

Band 8 Spectrum and the 600 MHz Boundary

Band 8 spans 570.1 to 600.5 MHz, which means its upper edge sits right against the 600 MHz boundary affected by the United States spectrum repack. Regulators reallocated the spectrum at and above 600 MHz to mobile broadband, and wireless microphone operation in that reallocated range is now restricted, so while the great majority of Band 8 falls below the boundary, its top edge brushes against it and the usable portion depends on current local regulations. Anyone buying this transmitter should confirm that Band 8 is legal to operate at their location before deploying it, and should coordinate carrier frequencies below the restricted range; the 1,200 selectable frequencies across 30.5 MHz of switching bandwidth leave ample room to do exactly that. This is buyer-protective information rather than a warning against the product, and it applies equally to the receiver already in the rack, which occupies the same band.

The D5 Supercardioid Dynamic Vocal Head

Dynamic and supercardioid describe the fitted D5 head, and both choices point at the same goal of surviving a loud stage. A dynamic capsule uses a moving coil rather than a charged diaphragm, which makes it mechanically robust, tolerant of handling and immune to the humidity that troubles condensers, and its 144 dB SPL rating means a singer working the grille at full voice will not distort it. Supercardioid narrows the pickup further than a cardioid and places its deepest rejection to the rear sides, so wedge monitors and side fills sit in the null and gain before feedback rises where it matters most, at the front of a stage. Owners describe the head as a punchy, feedback-resistant live vocal capsule, and lead vocalists in clubs, theatres and festival stages are exactly who it was voiced for.

Infrared Setup, Pilot Tone and Silent Operation

Infrared data transfer from the receiver programs the transmitter's channel and carrier frequency automatically, with no numbers typed in by hand. Manual frequency entry is where multichannel systems break down, because one mistyped digit produces a channel that hears nothing or, worse, one that collides with a channel already in use, and pushing the setting optically from the receiver removes that class of error entirely; users report it makes adding or re-tuning a channel fast even for non-technical operators. A pilot tone is transmitted continuously alongside the audio, and the receiver uses it as a key, muting its output the instant the tone disappears so that switching a transmitter off or walking out of range produces silence rather than a burst of RF noise through the PA. Muting on the transmitter is equally clean, with a central on / mute / off switch that operates silently, so a reader can mute mid-service without a click reaching the congregation.

Single-AA Power, Battery Readout and Typical Deployments

Power comes from one AA cell, and runtime depends on chemistry: 7 hours on an LR6 alkaline, 8 hours on an HR6 NiMH rechargeable, and up to 14 hours on an FR6 lithium cell. Running a full evening on a single common battery keeps the operating cost and the spares inventory small, and the LC display's remaining-capacity readout in hours is the feature owners praise most, because it turns a guess before the second set into a decision; integrated charging contacts on the body also allow a NiMH cell to be recharged in the matching CU400 charging unit without the battery door being opened. Housing an integrated dipole antenna inside the body keeps the exterior clean with no whip to snag on a strap or snap in a case, and reviewers consistently describe the platform as road-ready. Spare or replacement handhelds for a working Band 8 system, added channels on an installed multichannel rack, lead vocals in clubs and theatres, worship handhelds, school auditoriums, lecterns, council chambers and roaming presenter microphones are where this transmitter earns its place.
