AKG HT470 D5 BD7 Wireless Handheld Transmitter Dynamic 500-530 MHz

AKG HT470 D5 BD7: Supercardioid Dynamic Handheld on Band 7

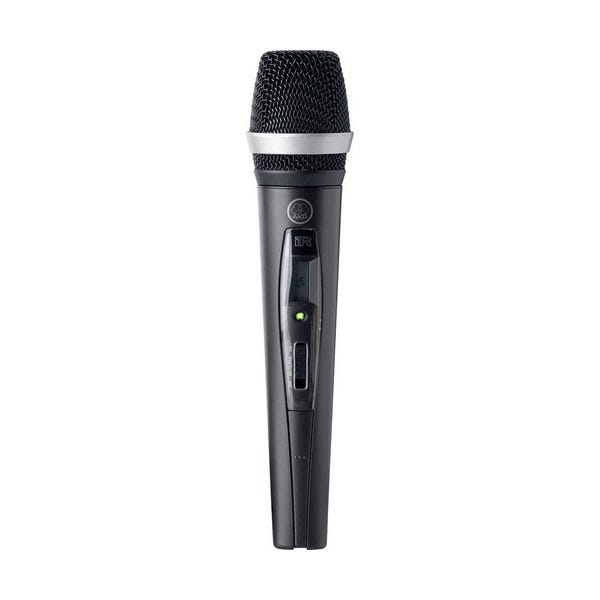

The AKG HT470 D5 BD7 50mW is an analog UHF handheld wireless transmitter fitted with the D5 supercardioid dynamic head and tuned to frequency Band 7, 500.1 to 530.5 MHz, at 50 mW of effective radiated power. Its head is rated to 144 dB SPL, the audio path measures 35 to 20,000 Hz with 120 dB-A signal-to-noise and 0.7 percent distortion at 1 kHz, and the carrier grid offers 1,220 frequencies in 25 kHz steps across 30 MHz with up to 24 simultaneous channels recommended. Channel setup is optical, since the companion SR470 receiver programs the handheld by infrared, and an LC display reports remaining operating time in hours. A single AA cell powers it, with charging contacts built into the body. It is the handheld for a loud stage on the quieter of the two low bands.

Why Band 7 Is the Easier Band to Plan Around

Sitting between 500.1 and 530.5 MHz, Band 7 falls comfortably below the spectrum that regulators in the United States reallocated to mobile broadband when the 600 MHz range was redrawn. Operation at and above 600 MHz is restricted there, which means systems bought at the top of the UHF range have watched their usable spectrum narrow, whereas a band centred near 500 MHz avoids that pressure entirely and is generally less crowded in practice. Television allocations still differ from market to market, so the sensible commissioning step is to establish which channels are occupied where the system will work and place carriers in the clear gaps. That is coordination discipline rather than a caution about the product, and with 30 MHz of switching bandwidth divided into 25 kHz steps there is normally a very large amount of clear space to choose from.

Supercardioid Geometry and Gain Before Feedback

Pattern is the reason the D5 head suits a stage, because supercardioid narrows the pickup further than a cardioid and moves the deepest points of rejection to the rear sides rather than directly behind. Feedback happens when a loudspeaker's output re-enters the microphone with enough level and the right phase to sustain itself, so the practical question on any stage is where the microphone is deafest relative to where the monitors are; a supercardioid's nulls fall roughly where floor wedges and side fills are usually placed, which lifts the gain a monitor engineer can achieve before the system rings. The trade is a small rear lobe and a requirement that the vocalist stays reasonably on-axis, which experienced singers do naturally. Rock and pop vocalists in clubs, festival stages with high stage volume, worship platforms with wedges, and sports announcers in noisy arenas all benefit from exactly that geometry.

Dynamic Capsule Durability and 144 dB SPL Headroom

Rated to 144 dB SPL, the fitted head has more headroom than any singer will ever require, and its dynamic construction is what makes it survive the environment as well as the volume. A moving-coil capsule generates its signal mechanically, needs no polarising voltage and is largely indifferent to the humidity, temperature swings and condensation that trouble condensers on a hot summer stage, and its comparatively robust assembly tolerates being dropped, gripped hard and packed in a hurry. That tolerance is why dynamic handhelds dominate rental inventories and school stages, where microphones are handled by people who did not buy them and will not be repairing them. A vocalist working right on the grille at full voice gets a capsule that stays composed, and a technician gets a microphone that comes back from a tour still working.

One AA Cell, Chemistry Detection and the Hours Display

Running from a single AA cell, the transmitter delivers 7 hours on an LR6 alkaline, 8 hours on an HR6 NiMH rechargeable and up to 14 hours from a single AA depending on the cell fitted. Automatic detection of the installed chemistry is what keeps the LC display's remaining-time figure honest, because alkaline and NiMH cells discharge along quite different curves and a gauge that assumed one would mislead badly with the other; reporting the result as a number of hours rather than a three-segment bar is what turns a pre-show battery check into a decision. Charging contacts on the body allow a rechargeable cell to be topped up in the CU400 charging unit without the battery door ever being opened, which both preserves the door catch and keeps the handset sealed. Across a fleet of handhelds that combination is what makes a nightly charging routine realistic instead of aspirational.

Infrared Programming, Range and Typical Stages

Setting a channel is done optically, with the SR470 receiver transferring its carrier frequency to the handheld over an infrared link rather than an operator entering digits. That matters most in the systems most likely to break, because a single mistyped figure in a multichannel rack yields either a channel that hears nothing or one that collides with a channel already in service, and pushing the setting from the receiver removes the possibility altogether; operators who are not technical can retune or add a channel in seconds. Effective radiated power of 50 mW supports a working range around 330 ft (100 m) depending on the receiving antenna system, which comfortably exceeds the rooms this class of system usually serves. Clubs and cover-band stages, festival and school auditoriums, worship platforms, roaming presenter and game-show microphones, sports and event announcing, and rental inventories replacing a damaged Band 7 handheld are where this transmitter is ordered.
