AKG HT45 Band A Wireless Handheld Transmitter with P5 Dynamic Head

AKG HT45 BD A: Perception Wireless Handheld Transmitter

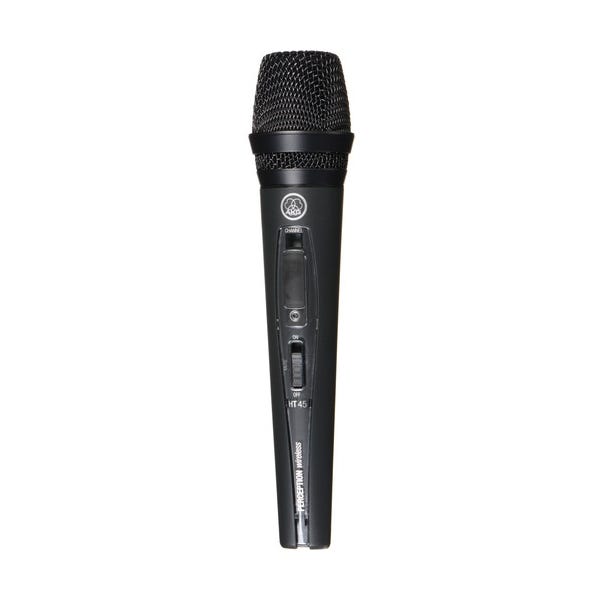

The AKG HT45 BD A is an analog UHF handheld wireless microphone transmitter from the Perception Wireless series, fitted with the P5 dynamic capsule and supplied in the Band A frequency configuration. Transmission is FM with 15 kHz nominal deviation at 10 mW of RF output, giving a line-of-sight working range of about 98 ft (30 m), while audio bandwidth spans 70 to 20,000 Hz at approximately 105 dB-A signal-to-noise. Operation is intentionally simple, with a gain control on the body, a noiseless on / off / mute switch and a battery status indicator that turns red before the cell runs out. One AA cell drives it for 7 hours as an alkaline or 8 to 10 hours as a NiMH rechargeable, and a stand adapter and battery are supplied. It is a straightforward working handheld rather than a specialist one, and that is the point.

The P5 Cardioid Dynamic Capsule in the Hand

Fitted to this transmitter is the P5 dynamic capsule with a cardioid polar pattern, and the two attributes together describe a handheld built for everyday use rather than for a specialist job. Dynamic construction generates the signal from a coil moving in a magnetic field, so there is no polarising voltage to supply and nothing inside that objects to humidity, temperature swings or being handled roughly by someone who did not buy the microphone; cardioid pickup collects sound broadly from in front and rejects what is directly behind, which is the most forgiving pattern for a speaker who does not keep a consistent distance from the grille. That forgiveness is exactly what a passed-around microphone needs, because the pattern tolerates an off-axis talker far better than a tighter one. Announcements, readings, question-and-answer sessions and school presentations are where a cardioid dynamic handheld consistently outperforms a more specialised capsule.

10 mW Output, FM Modulation and Working Range

Transmitting at 10 mW, the HT45 deliberately sits at a modest power level, and understanding why explains the design rather than exposing a limitation. Radiated power buys margin against absorption by bodies, walls and lighting rigs, but it also raises the transmitter's footprint in shared spectrum, and for the single-channel and small multichannel work this series was built for, a lower level covers the room while making the channel less demanding to place; the resulting 98 ft (30 m) line-of-sight range comfortably exceeds the size of a chapel, classroom, meeting room or small theatre. Modulation is FM with 15 kHz nominal deviation, and the audio path measures 70 to 20,000 Hz at approximately 105 dB-A signal-to-noise. Adding a well-sited receiving antenna does more for reliability in these rooms than more transmit power ever would.

Reading the Band Designation and Verifying It Before Deployment

Band A identifies the frequency configuration this transmitter was built for, and AKG does not publish the carrier range for that band in its product documentation. Figures circulating through distribution contradict one another, and a frequency range is the one specification a buyer coordinates an entire rig against, so none is stated here rather than publish a number that cannot be traced to a manufacturer band table; the platform-wide carrier span AKG does quote is not a band definition and has been withheld for the same reason. Authoritative information is printed on the hardware itself, on the transmitter and on its matching receiver, so read that label or request the band table from AKG support before building a channel plan. Anyone deploying in the United States should check the label against current spectrum rules as well, since the post-repack reallocation restricts operation in parts of the former UHF range, and that is a coordination and legality step rather than a comment on the transmitter.

One AA Cell, Chemistry-Dependent Runtime and the Low-Battery Warning

Power comes from a single AA cell, and the runtime depends on what is fitted: 7 hours from an LR6 alkaline, or 8 to 10 hours from an HR6 NiMH rechargeable. Choosing between them is a workflow decision rather than a performance one, since alkalines suit an organisation that issues microphones occasionally and would rather not manage a charging routine, while rechargeables make sense wherever the same handhelds are used every week and someone is accountable for them. What matters more than either figure is the battery status indicator, which turns red before the cell is exhausted so a technician sees the warning while there is still time to swap; a wireless microphone that dies without notice mid-sentence is the failure an audience remembers. Booking a fresh cell before each event, and treating the red indicator as an instruction rather than a suggestion, is what keeps that from happening.

Controls, Box Contents and Typical Deployments
