AKG HSD271 Studio Set Dynamic Boom Headset with MK HS Studio D Cable

AKG HSD271 Studio Set: A No-Phantom Position, Fully Wired

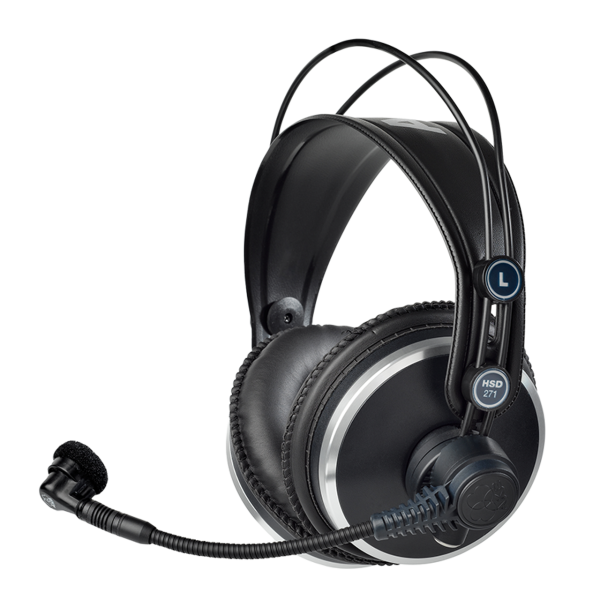

The AKG HSD271 Studio Set is a complete wired headset package combining the dynamic-microphone over-ear headset with the MK HS Studio D extendable connecting cable. It answers two separate problems in one order: the headset connects through a single 6-pin locking mini connector that no generic lead will fit, and the cable itself has to be wired for a dynamic element rather than a condenser. Getting either half wrong leaves a studio with a headset that cannot be plugged in or a microphone path that behaves incorrectly. For a facility building an announce, intercom or moderator position from scratch, the set removes both failure modes at once.

Two Halves That Have to Match

Connection at the headset end is a gold-plated 6-pin locking mini connector, a compact multi-pin body that carries the stereo headphone feed and the microphone signal together behind a threaded locking collar. Because the pin assignment and the way the microphone leg is wired both depend on which element the headset uses, the manufacturer publishes two distinct cables: one for condenser headsets that carries phantom power up to the capsule, and this one for dynamic headsets, which manufacturer documentation states requires no phantom powering. Fitting a condenser cable to a dynamic headset, or the reverse, is the classic mistake this set exists to prevent. Ordering the set means the pinout, the powering behaviour and the terminations are all matched at the factory rather than reasoned out in a rack room.

Where the Two Terminations Land in a Production Chain

At the far end the cable splits into a 3-pin XLR male for the microphone and a 1/4 in (6.3 mm) stereo jack for the headphones, which are the two connectors used on outside-broadcast panels, remote truck walls, announce boxes and talkback racks. That split reflects how a production signal chain actually works, since the microphone has to reach a preamp input while the headphones have to come from a monitor or comms output, and those are physically different destinations in every facility. Extendable length from 5.9 ft to 8.2 ft (1.8 to 2.5 m) then covers the difference between an operator seated at a desk and the same operator standing to look through a window. A remote truck engineer wiring six announce positions can therefore use one standard patch convention and one cable type across all of them.

A Dynamic Element and the Inputs It Unlocks

Microphone duty is handled by a dynamic element on a flexible boom, meaning a coil attached to the diaphragm moves through a fixed magnetic field and generates the audio signal directly with no polarising voltage and no internal electronics. That single property is what allows this package to be used with field mixer talkback inputs, camera intercom returns, wired belt packs and older analog communication panels, none of which reliably supply phantom power. It also brings the secondary benefits of a moving-coil design, which are tolerance of moisture, physical knocks and high sound pressure at close range. A field crew working outdoors in unpredictable weather is exactly the case the dynamic version was built for.

Isolation and Hands-Free Control on a Live Floor

Monitoring comes from sealed closed-back circumaural earpieces derived from a studio closed-back headphone, rated at 55 ohms with a sensitivity of 104 dB SPL/V at 1 kHz and a maximum input power of 200 mW. Sealed cups keep crowd, machinery and room noise from masking a director cue, and equally importantly stop the monitor feed leaking back into the boom microphone and circulating through the comms system as an echo. Control is mechanical rather than electronic: raising the boom arm mutes the microphone, and a switch in the headband mutes the audio as soon as the headphones come off the head. Crews whose hands are holding a camera, a lighting yoke or a script get muting as a reflex instead of a request.

Serviceability, What to Verify and Who Should Buy It

Because the cable detaches at the headset, the part that fails first in any headset is a replaceable item rather than a reason to retire the whole unit, and replaceable velour earpads extend that logic to the other wear point. Buyers should confirm on arrival that the connecting cable is present, as at least one dealer customer account describes a set delivered without it, and the set part number is distinct from the bare headset for exactly that reason. Natural applications run from studio, moderator and commentator positions to outside-broadcast trucks, electronic news gathering crews, sports announce booths, theatre stage management and streaming host desks. Anyone who already stocks the correct dynamic cable can buy the bare headset, but for a new position this is the package that works the day it lands.
