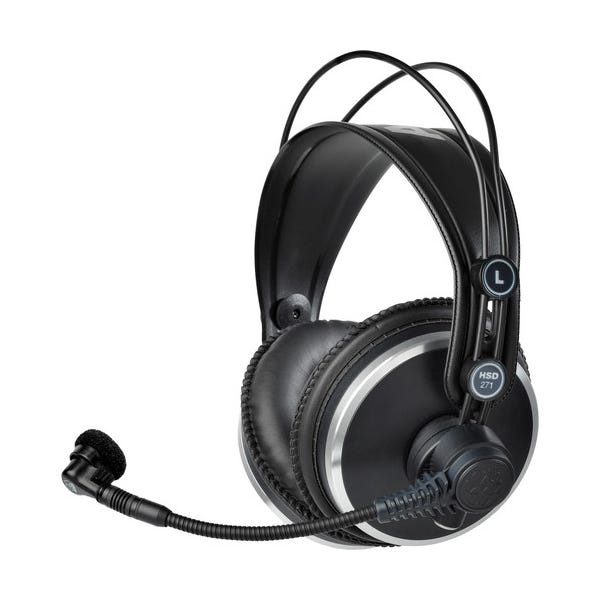

AKG HSD271 Over-Ear Broadcast Headset with Dynamic Boom Microphone

AKG HSD271: The Dynamic-Microphone Answer to Intercom Powering

The AKG HSD271 is a professional over-ear headset with a dynamic boom microphone, built on a sealed closed-back circumaural headphone platform rated at 55 ohms and 200 mW. The single letter that separates it from its condenser-microphone sibling carries the whole engineering argument: D marks a dynamic element, which generates its own signal with no internal electronics and therefore needs no powering of any kind. Two versions of the same headset exist precisely because so many communications systems cannot supply phantom power, and a condenser headset plugged into one of them is silent. Manufacturer documentation names it a standard for intercom, electronic news gathering, field production and video work, which is exactly the population of equipment where that powering question bites hardest.

Dynamic Versus Condenser: What Actually Changes

A dynamic microphone element works by moving a coil of wire attached to the diaphragm through a fixed magnetic field, and that motion generates the audio signal directly with nothing to energise. A condenser element instead measures the changing capacitance between a diaphragm and a fixed backplate, which only works if that capsule is held at a polarising voltage and followed by an internal impedance converter, both of which require phantom power. The consequences run in both directions: a condenser is more sensitive and more articulate, while a dynamic is more tolerant of moisture, physical abuse and extreme sound pressure, and it will work on any input that can accept a microphone-level signal. For a camera operator standing in the rain on a wired intercom loop, the second list is the one that matters.

Systems That Supply No Phantom Power

Wired intercom belt packs, camera intercom returns, field mixer talkback inputs, production communication panels and older analog comms loops frequently provide a microphone input with no phantom power at all, because they were designed around dynamic headsets from the start. Plugging a condenser headset into those inputs produces nothing, and no amount of gain fixes it, which is a failure that tends to be discovered on location rather than in the shop. Choosing the dynamic version removes that dependency entirely, so the same headset can be moved between a production truck, a camera position and a stage management panel without checking a specification sheet each time. Facilities that run mixed equipment often standardize on the dynamic version for exactly that portability.

Hands-Free Muting for Crews Who Are Holding Something Else

Mechanical mute control is built into two places: the flexible microphone arm mutes the element automatically as it is moved up, and a switch in the headband mutes the audio as soon as the headphones are taken off. Both matter more in field production than in a studio, because a camera operator, a lighting technician or a stage manager on comms has both hands committed to equipment and no console within reach. Flipping the boom up to cough, to speak to someone standing next to them or to stop contributing crowd noise to a busy comms circuit becomes a reflex rather than a request to an engineer. Lifting the headset off and having the audio stop by itself likewise prevents a discarded headset lying on a case and leaking programme sound into a nearby microphone.

The Sealed Closed-Back Platform and Isolation on Set

Headphone duty is handled by a sealed closed-back circumaural design derived from a K271 MKII studio headphone, at a rated impedance of 55 ohms with a sensitivity of 104 dB SPL/V at 1 kHz and a maximum input power of 200 mW. Sealed construction does two jobs on a production floor: it blocks the crowd, the machinery and the room from masking a director cue, and it stops the headphone feed from leaking out into the boom microphone and returning to the comms circuit as an echo. Manufacturer figures differ on how to present the frequency range, with 60 Hz to 17,000 Hz published on the manufacturer page and 16 Hz to 28,000 Hz appearing in secondary specification tables for the headphone section, so both are listed and labelled rather than merged. Replaceable velour earpads and a self-adjusting headband carry the comfort load across a long shift.

The Cable Is Not in the Box, and What to Order

One fact deserves stating plainly because it is the most common surprise in this product family: the headset is supplied without a connecting cable, and the appropriate cable must be ordered separately. Connection is made through a single gold-plated 6-pin locking mini connector that carries both the stereo headphone feed and the microphone signal, so no generic lead substitutes for the correct part. The matching companion cable for this model is the MK HS Studio D, wired for a dynamic element with no phantom powering required, terminating in a 3-pin XLR male for the microphone and a 1/4 in stereo jack for the headphones. A Studio Set version of this headset exists that ships with that cable already included, which is the simpler route for a new position.
