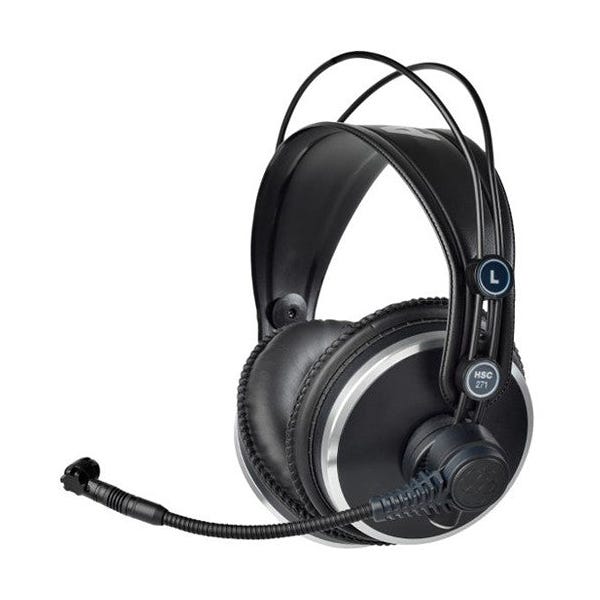

AKG HSC271 Studio Set Broadcast Headset with Condenser Mic and Cable

AKG HSC271 Studio Set: A Broadcast Headset That Arrives Ready to Work

The AKG HSC271 Studio Set is a complete wired broadcast headset package pairing the closed-back condenser-microphone headset with the MK HS Studio C extendable connecting cable. This distinction is not cosmetic: the headset on its own is supplied without a cable, and because it uses a single 6-pin locking mini connector for both the headphone and the microphone paths, no generic lead will substitute. Buying the set therefore removes the most common ownership mistake in this product family, which is a headset arriving in a studio that cannot be connected to anything. For a broadcast facility fitting out an operator position, it is one order that produces a working station.

The MK HS Studio C Cable and What It Does

Length is extendable from 5.9 ft to 8.2 ft (1.8 to 2.5 m), which means the cable pulls out as the operator leans toward a rack or a guest and retracts when they sit back, rather than leaving a permanent coil of slack under the desk. At the far end it breaks out into two connectors chosen for studio wiring rather than for consumer equipment: a 3-pin XLR male carrying the microphone and a 1/4 in (6.3 mm) stereo jack carrying the headphones, both of which land directly on the panel of a broadcast console or a talkback rack. That split matters because a studio routes the microphone into a preamp channel and the headphones from a monitor bus, and those are two entirely different destinations. An engineer wiring a new position gets to use the same patch conventions as every other channel in the room.

One Connector, Two Signal Paths, Fully Serviceable

At the headset end the cable terminates in a gold-plated 6-pin locking mini connector, a compact multi-pin connector that carries the stereo headphone feed and the microphone signal through a single locking body. Locking is the operative word: a cable tug during a live shift pulls against a threaded collar rather than sliding free, which is the difference between a knocked cable and dead air. The equally important consequence is serviceability, because the part of a headset that fails first is almost always the cable where it flexes, and a detachable design turns that into a cable replacement instead of a headset replacement. Facilities that run headsets across multiple shifts a day treat that as the reason to standardize on this connector in the first place.

Powering a Condenser Element From the Console

Because the boom microphone is a condenser rather than a dynamic element, it needs powering, and the supplied cable passes 9 to 52 V phantom power to it on the standard XLR pins. Phantom power is a DC voltage sent up the same balanced pair that carries the audio, supplied by essentially every modern microphone preamp, and the practical requirement is simply that the destination channel can switch it on. Condenser elements repay that with higher sensitivity and better articulation than a dynamic capsule of the same size, which is why commentary and moderator positions favour them. Any facility whose intercom or camera inputs cannot supply phantom power should be looking at the dynamic-microphone version of this headset and its matching cable instead.

Two Automatic Mutes and a Bass-Cut Filter in a Live Shift

Operational control is built into the mechanics rather than left to the console: raising the boom arm mutes the microphone automatically, and lifting the headband off the head mutes the headphones automatically. Both behaviours exist for the same reason, which is that an operator in a live position has both hands busy and cannot reach a fader to cover a cough or to talk to someone who has walked into the room. A switchable bass-cut filter on the microphone path handles the other recurring problem at close range, trimming rumble, breath and the proximity buildup a presenter creates by working right on the capsule. Together they let a commentator work a three-hour match without touching a control surface.

The Headphone Side and Who Should Order the Set

Monitoring quality comes from a closed-back circumaural design derived from a K271 MKII studio headphone, covering 20 Hz to 20,000 Hz at 55 ohms with a maximum input power of 200 mW, with replaceable velour earpads and a self-adjusting headband. Closed cups do two jobs at once in a communications position: they keep crowd and studio noise out so the operator hears the programme feed, and they keep the monitor feed from leaking into the boom microphone and back into the broadcast. Radio and podcast studios, sports commentary positions, television moderator desks, outside-broadcast booths and interpretation cabins are the natural applications. Anyone who already owns the correct cable can buy the headset alone, but for a new position the set is the version that works out of the box.
