AKG HP6E 6-Channel Matrix Headphone Amplifier 1 RU Rackmount 5 Inputs

AKG HP6E: Six Headphone Feeds With True Matrix Routing

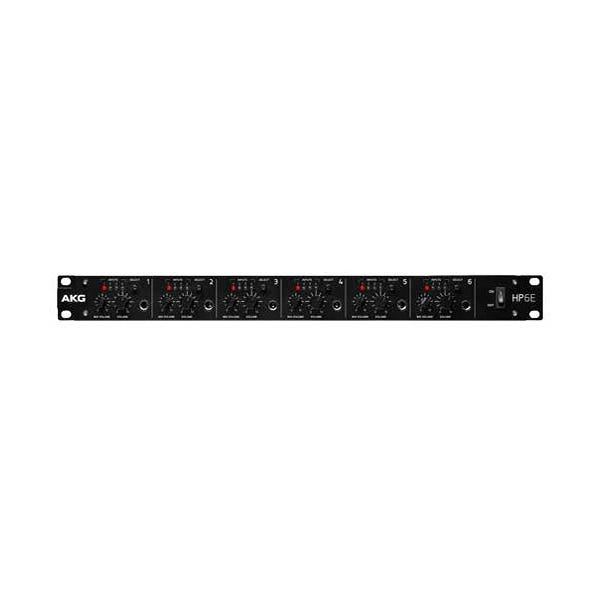

The AKG HP6E is a 6-channel matrix headphone amplifier built around six totally independent stereo high-power amplifiers in a 1 RU package. Five stereo input channels arrive on unbalanced 1/4 in (6.3 mm) sockets at a 100 kilohm input impedance, and the matrix design lets each of the six output channels be assigned to a selectable input channel instead of being locked to one source. Every channel carries two 1/4 in output sockets, an 11 ohm output impedance and a 300 mW maximum output level, with distortion below 0.05 percent, signal-to-noise better than 85 dB-A and an audio frequency bandwidth of 20 Hz to 20,000 Hz. A sturdy 19 in (483 mm) metal chassis holds an integrated power supply, and the item number is 3450H00030. It is the headphone amplifier for a room where six people need six different sources, not six copies of the same one.

Five Stereo Inputs and Why the Matrix Is the Whole Point

Five separate stereo input channels feeding six assignable outputs is the architectural fact that defines this amplifier and separates it from a simple distribution box. A matrix, in monitoring terms, means the connection between sources and listeners is a grid rather than a bus: any output can be pointed at any of the available input channels, and changing one listener's source has no effect on anybody else's. That flexibility solves a problem that appears the moment a session stops being simple, because a tracking date might need the drummer on a click-heavy cue feed, the vocalist on a reverb-rich feed, the producer on the raw mix and a guest on a talkback-only feed all at the same time. Engineers who have ever tried to serve those four needs from a single split output know exactly how much time the grid saves.

Independent Amplifiers Rather Than One Output Divided

Six totally independent stereo high-power amplifiers means the six channels are electrically separate, and that independence is worth understanding before comparing headphone options. Plugging several pairs of headphones into one source puts their impedances in parallel, which lowers the load resistance the source sees, drops the level everyone receives and couples the listeners together, so one person unplugging changes what the rest hear; a dedicated amplifier per channel breaks that coupling completely. An 11 ohm output impedance keeps the amplifier's grip firm on the headphone it drives, since a low source impedance relative to the headphone load is what stops the frequency response shifting from one pair of headphones to the next. For a studio owner fitting out a tracking room, that means a mixed collection of studio and personal headphones all behave predictably on the same rack unit.

Output Level, Bandwidth and Distortion in Practice

Three published figures describe how this amplifier behaves once the session is running: a maximum output level of 300 mW, distortion below 0.05 percent and signal-to-noise better than 85 dB-A across an audio frequency bandwidth of 20 Hz to 20,000 Hz. Output level sets how loud a headphone can be driven before the amplifier runs out of headroom, and the demanding case is always a drummer trying to hear a click over an acoustic kit sitting a few feet away. Distortion under 0.05 percent and a noise floor better than 85 dB-A matter for a different reason, because a cue feed that hisses or hardens at low level is the reason players ask for more volume than they actually need. A quiet, clean feed lets a lecture-hall manager or a house-of-worship tech run monitoring at a comfortable level all day without listener fatigue.

Two Sockets Per Channel and a Master Mix Control

Each of the six channels offers two 1/4 in (6.3 mm) output sockets, which doubles the number of headphones the unit can serve when two listeners are happy to share one level setting. Sharing a channel is not the same as sharing a splitter, because both sockets sit behind the same dedicated amplifier and the same volume control, so the pair get a proper amplified feed rather than a divided one. A master mix volume control sits alongside the per-channel controls and governs the amplifier output, which is what an operator reaches for when the whole room needs to come down at once rather than one seat at a time. Producers and clients listening together at the back of a control room are the classic pairing this arrangement was designed around.

One Rack Unit, an Internal Supply and Room to Grow

Everything described above lives inside a single rack unit of a sturdy 19 in (483 mm) metal chassis with an integrated power supply, so there is no external adapter to lose, tape down or find a spare outlet for. That matters more in installed racks than most spec sheets admit, because an internal supply means one mains cable, one rack space and no wall-wart competing for a power strip behind a council-chamber or lecture-hall rack. When a project outgrows six channels, multiple HP6E units can be connected together, letting an AV integrator scale headphone distribution by adding a rack unit instead of replacing the system. Studio owners, broadcast facilities and worship media booths all end up standardising on the same box for exactly that reason.
