Chauvet Pro ROGUER1XSPOT Rogue R1X Spot - 170W LED Moving Head Light Fixture with Gobos

Chauvet Pro Rogue R2X Spot LED Intelligent Par Lighting Fixture

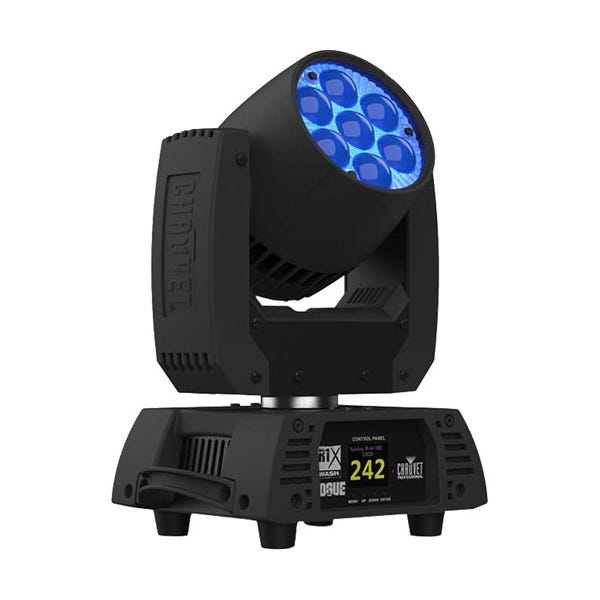

Chauvet Pro ROGUER1XWASH Rogue R1X Wash RGBW LED Moving Head Wash Light

Home Intelligent / Moving Head Chauvet Pro ROGUER1XWASH Rogue R1X Wash RGBW LED Moving Head Wash Light

was $1,481.20 Special Price $1,315.00

Fully featured RGBW LED yoke wash fixture with zoom

Availability: In Stock

SKU

ROGUER1XWASH

This product includes a 3 year limited manufacturer warranty from Chauvet Professional.

Features:
- Fully featured RGBW LED yoke wash fixture with zoom
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- 7 RGBW LEDs, 25 W each
- 3- and 5-pin DMX input/output connections
- Unique lens design for excellent color blending
- Fast, smooth pan and tilt movement
- RDM enabled for remote addressing and trouble shooting
- Selectable LED maximum output to match legacy Rogue R1 Washes
- Selectable PWM settings for camera operation
- 6 distinct dimming modes for advanced control
- User-selected calibrated white for 7500 K at full output
- Omega mounting bracket, fits all Rogue and Maverick fixtures
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility

Details

The CHAUVET PROFESSIONAL Rogue R1X Wash is an LED moving-head wash light with a bubble lens design for accurate color rendering and dynamic visual effects. Featuring wide, 8 to 30° beam angles and 11 to 48° field angles with a motorized zoom, fast and precise pan/tilt movements with movement macros, and a variable strobe, it is an ideal addition to any touring rig or permanent installation for energizing dance floors, event spaces, and more.

The Rogue R1X Wash is powered by seven, 25W quad-color RGBW LEDs (red, green, blue, white), which allow for smooth color mixing with six distinct dimming modes. The unit can be controlled using the built-in OLED display or, for programming versatility, via simple and complex DMX channel profiles.

In addition to DMX daisy-chaining, the Rogue R1X Wash supports power linking via its pass-through powerCON power connectors, minimizing time spent on cable runs and finding power outlets. You can daisy-chain up to 10 fixtures in a 120V environment, or up to 20 fixtures in a 230V environment. Included is an Omega bracket with mounting hardware and a Neutrik powerCON power cord.

More Information

More Information
MPN	ROGUER1XWASH
UPC / EAN	781462219390
Brand	Chauvet Pro
Product Condition	New
Availability	In Stock

Specs

Optical

Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30°
Beam Angle: 7.9° to 35.5°
Field Angle: 11.5° to 50.8°
Cutoff Angle: 19.3° to 62.7°
Zoom Range: 7.9° to 62.7°
Lumens – Source: 4,000
Lumens – Output: 2,455
Illuminance (11°): 2,872 lux @ 5 m
Illuminance (50.8°): 279 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

Construction / Physical

Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
Weight: 13.6 lb (6.2 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 14, 15, 19 or 21
Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V
Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location

What's Included

Rogue R1X Wash
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Neutrik® powerCON® cables
DMX Cables
Flight Case: CP6CASER1W
