12 Inch Ceiling Speaker for Commercial Audio Systems

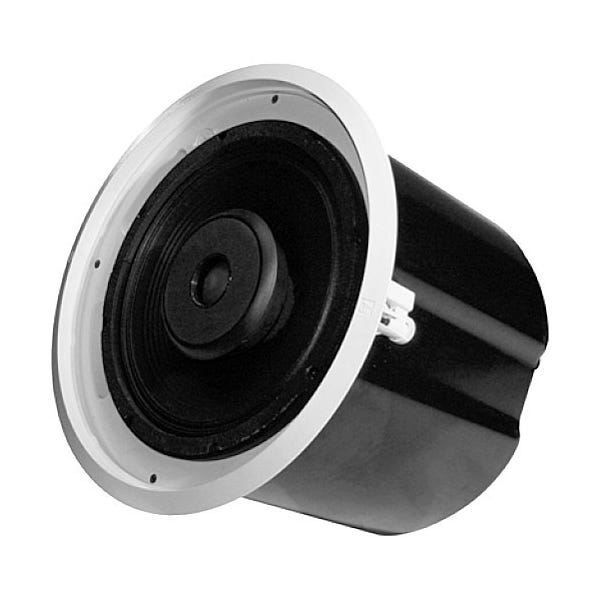

The Electro-Voice EVID C12.2 is a passive 12-inch ceiling-mounted loudspeaker system designed to deliver clear, consistent audio for commercial and installed sound environments. It is built to handle both background music and voice reinforcement, making it a practical solution for offices, retail spaces, restaurants, hospitality venues, and public areas that require reliable in-ceiling sound coverage.
Coaxial Speaker Design for Balanced Sound Coverage
At the core of the EVID C12.2 is a 12-inch coaxial transducer that delivers even frequency response and controlled dispersion. This design allows the speaker to reproduce both low and high frequencies from a single point, helping maintain clarity and intelligibility across listening areas while minimizing phase issues common in ceiling installations.
Flexible Power Options for Distributed Audio Systems
The EVID C12.2 supports 70V, 100V, and 8-ohm operation, making it compatible with a wide range of commercial amplifiers. A built-in 64-watt transformer with automatic saturation compensation helps maintain consistent performance at higher levels, even in large distributed audio systems with multiple speakers.
Front Accessible Tap Selector for Easy Adjustment
A front-panel tap selector switch allows installers to quickly set power levels without removing the speaker from the ceiling. This simplifies system tuning and makes it easier to balance volume levels across multiple zones or rooms during installation and future system adjustments.
Designed for Simple and Secure Installation
The speaker includes installation accessories such as a tile bridge, mounting ring, cutout template, and paint shield to streamline ceiling installation. Integrated mounting points support both drop-ceiling and open-ceiling applications, providing flexibility for different building layouts and architectural requirements.
Durable Enclosure for Long Term Performance
The rear enclosure is constructed from heavy-gauge steel and finished in black to blend into ceiling spaces while providing an optimal internal volume for extended low-frequency response. This robust construction supports consistent performance and long-term reliability in demanding commercial environments.
