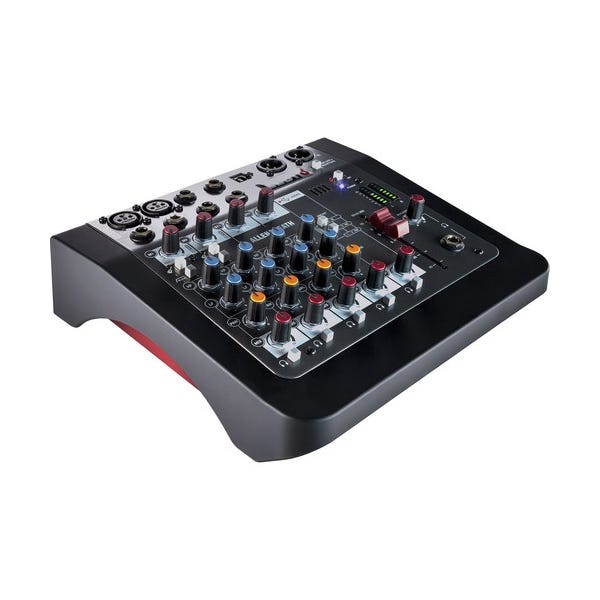

Allen & Heath ZEDi8 Compact Hybrid Mixer/USB Interface

was $319.99 Special Price $249.99
2 Mic/Line with Active DI 2 Stereo Inputs, 24/96kHz USB interface, 2-band EQ
Availability: In Stock
SKU
AH-ZEDi8





Allen & Heath warrants Allen & Heath branded hardware products and accessories contained in the original packaging against defects in materials for a period of ONE (1) YEAR from the date of original purchase by the end-user purchaser.

Features:
- 2 in, 2 out USB Audio Interface (24-bit/96kHz)
- Cubase LE Software included
- Cubasis LE App included
- 2 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
- Lo-cut filter for cleaning up unwanted low frequency noise
- 2 band EQ for easy creative and corrective tonal shaping
- 60mm smooth travel fader on main mix
- XLR main outputs
- Flexible signal monitoring
- 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZEDi-8 is a four-channel mixer that doubles as a USB interface. On the mixer side, you get two XLR inputs, two line/instrument inputs, and two pairs of stereo line inputs. Utilize this unit's digital capabilities and you'll find yourself with two channels of conversion—analog-to-digital or vice-versa. Thus, you'll find the ZEDi-8 equally suited for live-mixing in small venues and for tracking instruments on the fly.

Should you choose use the unit as an interface, you'll find that it comes with Cubase LE, a digital audio workstation which enables you to record, sequence, and edit music, be it audio or MIDI.

In the analog realm, the ZEDi-8 is crafted with preamps modeled on the Allen & Heath GS2-R24. These channel strips aim to provide warmth, low noise, and a vast expanse of headroom. On-board EQs also come standard with the unit. Two channels feature a button that converts line-level signal into high-impedance jacks, meaning guitar players need not lug an extra DI box around should they wish to go direct into the board.

Turning your attention back to the digital side of things, you'll notice that a USB switch controls the routing of your USB output, enabling you to select how you route and separate the incoming analog signals into your DAW.

More Information
MPN AH-ZEDi8
UPC / EAN 6938122243330
Brand Allen & Heath
Product Condition New
Availability In Stock
