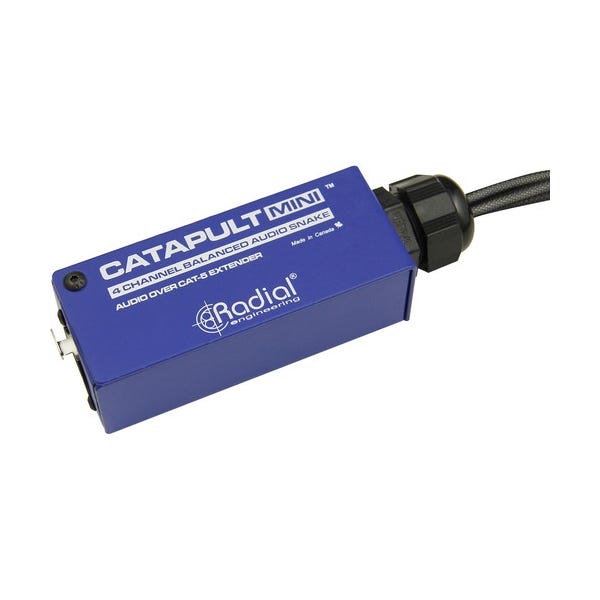

Home Cables, Connectors & Adapters Radial Engineering Catapult MINI RX 4ch cat-5 Mini Breakout Box to XLR-M Tails
was $143.99 Special Price $119.99
4ch cat-5 mini breakout box to XLR-M tails, uses shielded cat-5
Availability: In Stock
SKU
Catapult MINI RX





Radial products purchased by an authorized Radial Engineering reseller include a 3 year, transferable warranty.

Features:
  - Send four channels of analog audio over a Cat 5/6 cable
  - Available with XLRM, XLRF or ¼” TRS connectors
  - Works with a building’s existing cable infrastructure
  - Compact and lightweight, yet durable and rugged
  - Economical Cat 5/6 cable replaces bulky multichannel audio snakes

Analog audio over Cat 5 wiring.
The Catapult Mini System works like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Straight-wire passive operation
Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

Utilize pre-existing cable installations
As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

Mix & Match
Three versions of the Catapult Mini are available: The Mini TX features female XLR connectors, the Mini RX has male XLRs, and the Mini TRS is equipped with ¼” TRS jacks for balanced connection to any pro audio device.

More Information
MPN Catapult MINI RX
Output XLR
Channels Single
UPC / EAN 676101044764
Brand Radial Engineering
Product Condition New
Availability In Stock
